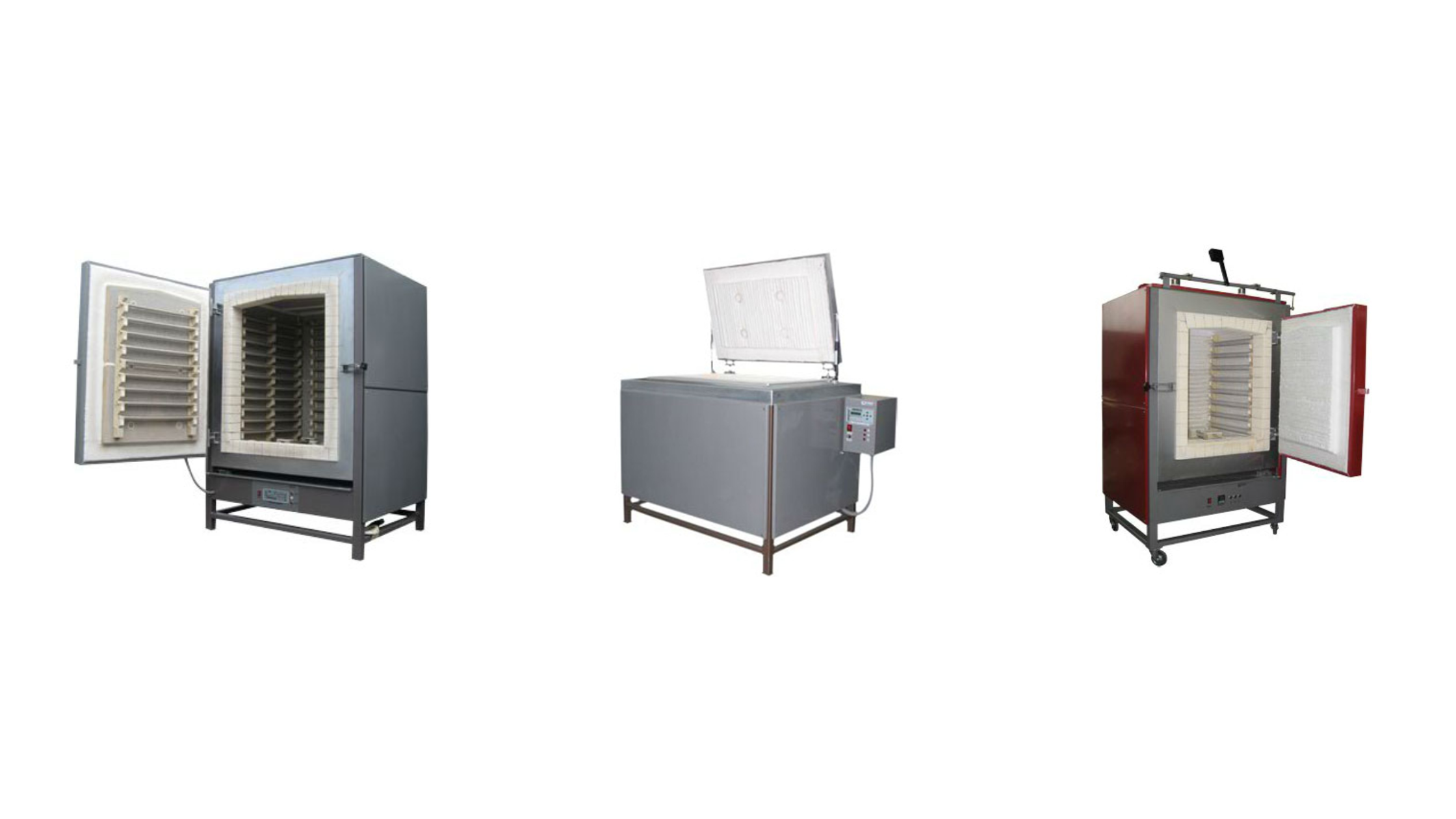

CHAMBER FURNACES FOR CERAMICS
The furnace structure is made of profiled sheet steel, with the frame filled with ceramic brick. The insulation space consists of a layer of high-quality ceramic fiber based on aluminum oxide and guided air flow, minimizing heat loss. Heating elements are made of alloyed electrical-resistance wire “Kanthal A1”. The door opens by rotation and is filled with appropriate insulation. The furnace is coated with a primer (protective) paint and finished with a durable top coat.
Model: EPK
Control: Microprocessor controller with programmer
Maximum temperature: T = 1300 °C
| MODEL NAME | WIDTH [mm] | DEPTH [mm] | HEIGHT [mm] | POWER [kW] | VOLTAGE [V] |
|---|---|---|---|---|---|
| EPK-09 | 200 | 300 | 150 | 3.45 | 380 |
| EPK-27 | 300 | 300 | 300 | 4.4 | 380 |
| EPK-48 | 300 | 400 | 500 | 6.4 | 380 |
| EPK-60 | 300 | 400 | 500 | 6.9 | 380 |
| EPK-64 | 400 | 500 | 400 | 8 | 380 |
| EPK-96 | 400 | 500 | 500 | 9.6 | 380 |
| EPK-125 | 500 | 500 | 500 | 9.6 | 380 |
| EPK-140 | 500 | 500 | 600 | 12 | 380 |
| EPK-192 | 500 | 700 | 500 | 12 | 380 |
| EPK-210 | 500 | 700 | 700 | 15.5 | 380 |
| EPK-364 | 650 | 700 | 800 | 20.7 | 380 |
| EPK-490 | 750 | 1000 | 1000 | 25 | 380 |
| EPK-1083 | 950 | 1200 | 950 | 33 | 380 |
Ceramic Furnace — Box-Type
| MODEL | WIDTH [mm] | DEPTH [mm] | HEIGHT [mm] | POWER [kW] | VOLTAGE [V] |
|---|---|---|---|---|---|
| EPK-110 | 700 | 400 | 400 | 6.6 | 380 |
| EPK-140 | 600 | 400 | 600 | 6.6 | 380 |
| EPK-170 | 700 | 400 | 600 | 7 | 380 |
