Glass Furnaces

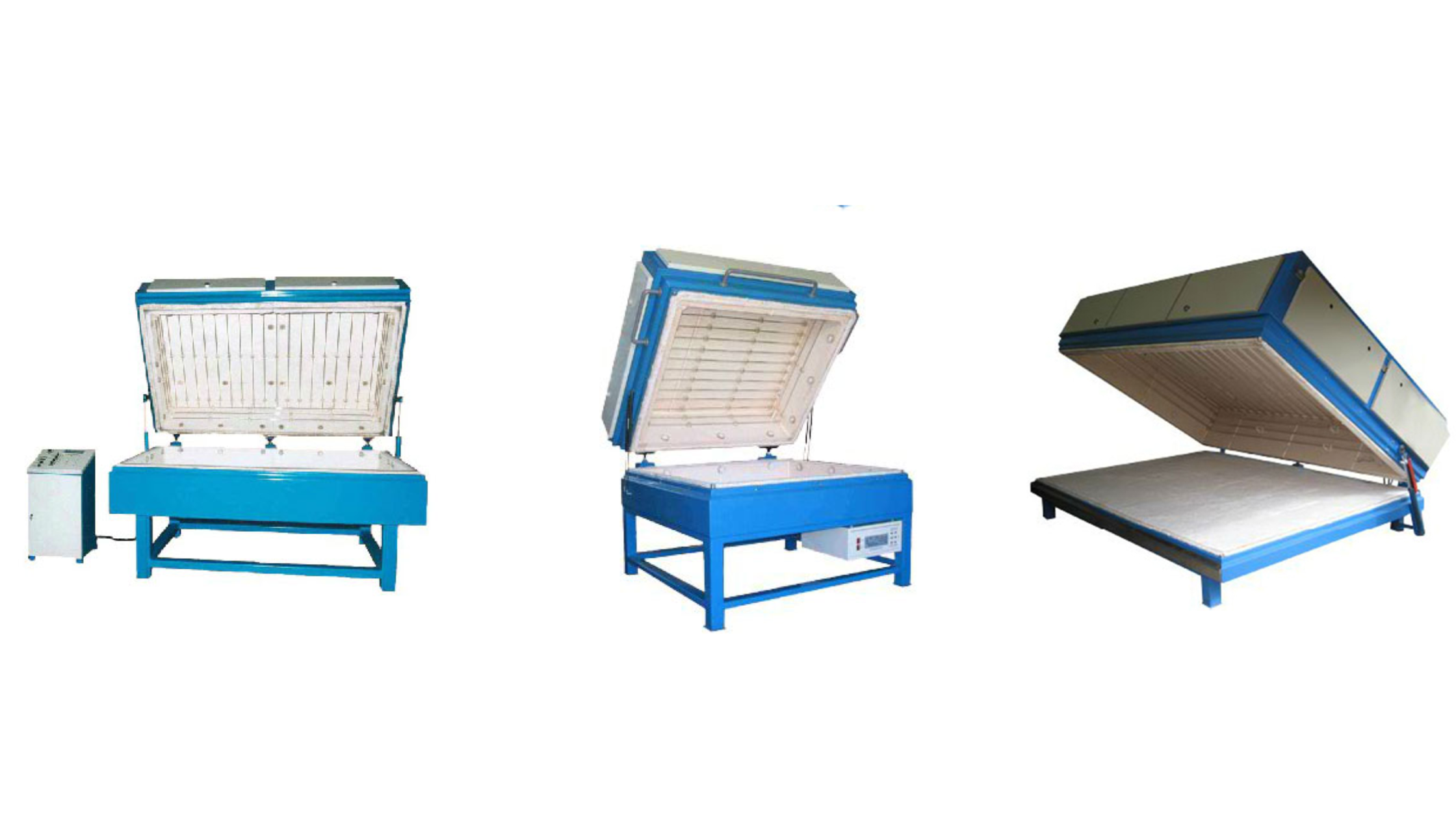

The furnace body is made of profiled sheet steel. The insulation consists of premium ceramic fiber based on aluminum oxide. The furnace is composed of two parts: the upper section serves as a lid that opens manually (with pneumatic lifters) or automatically (with hydraulic lifters). Kanthal A1 resistance-wire heating elements are installed in both the upper and lower sections. Control is located in a separate electrical cabinet. The furnace is coated with a protective primer and a durable finish.
Model: PSF
Control: Microprocessor controller with programmer and
thyristor drive, temperature accuracy ±1 °C
Maximum temperature: T = 1000 °C
| MODEL NAME | WIDTH [mm] | DEPTH [mm] | HEIGHT [mm] | POWER [kW] | VOLTAGE [V] |
|---|---|---|---|---|---|
| PSF-50 | 500 | 500 | 200 | 6 | 380 |
| PSF-80 | 400 | 500 | 400 | 7 | 380 |
| PSF-112 | 700 | 400 | 400 | 7 | 380 |
| PSF-150 | 1000 | 500 | 300 | 9 | 380 |
| PSF-275 | 1000 | 500 | 550 | 11 | 380 |
| PSF-319 | 1250 | 850 | 300 | 12 | 380 |
| PSF-500 | 1100 | 650 | 700 | 18 | 380 |
| PSF-555 | 1000 | 1500 | 370 | 20 | 380 |
| PSF-1188 | 2200 | 1200 | 450 | 28 | 380 |
| PSF-1584 | 2200 | 1600 | 450 | 33 | 380 |
| PSF-2392 | 2300 | 1600 | 650 | 35 | 380 |
| PSF-3024 | 2700 | 1600 | 700 | 43 | 380 |
