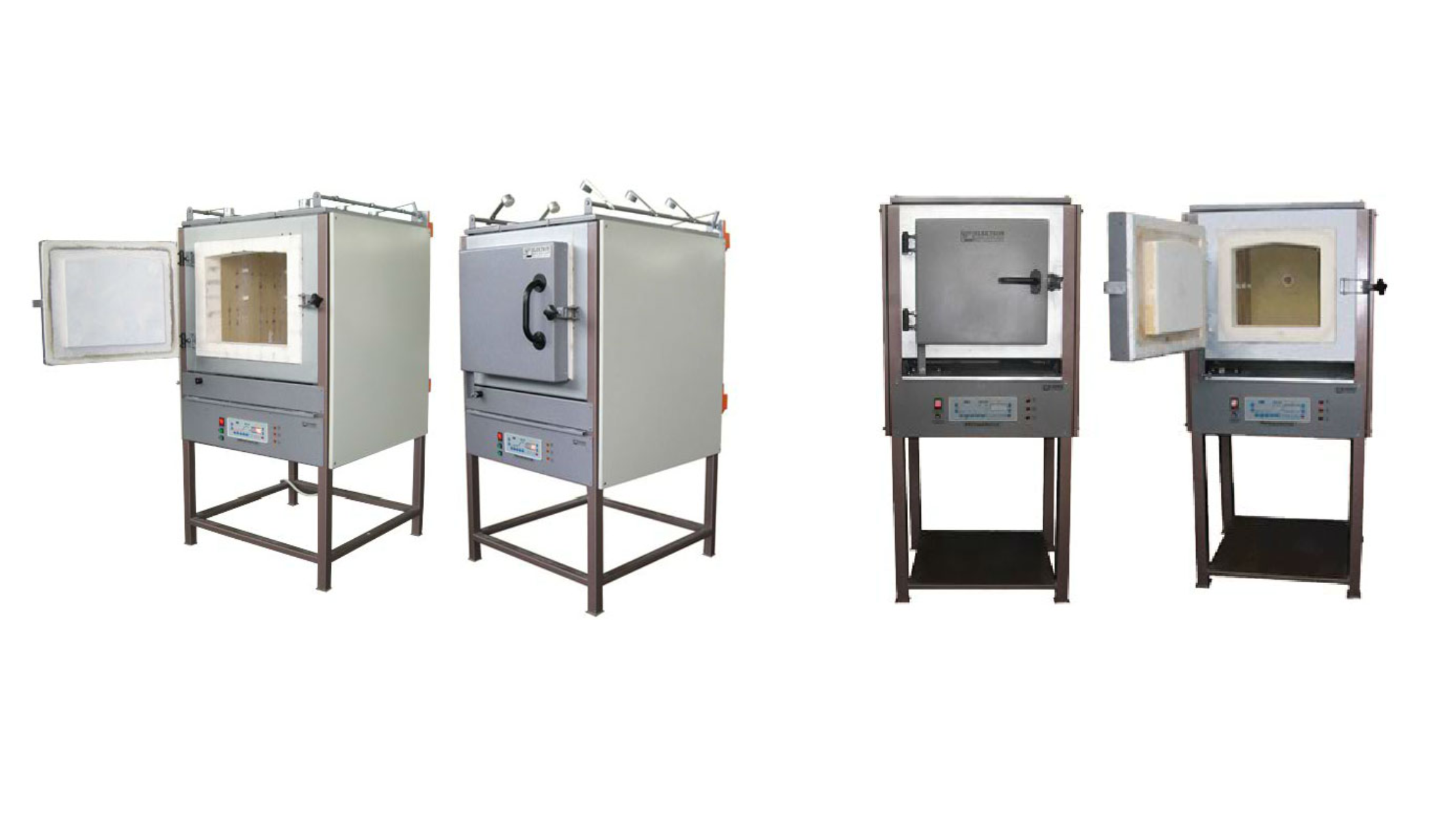

Decorative and Photo Ceramic Furnaces
The furnace structure is made of profiled sheet steel with a frame filled with ceramic brick.
The insulation space consists of top-quality ceramic fiber based on aluminum oxide, with guided airflow
to minimize heat losses. Heating elements are made of alloyed electrical-resistance wire “Kanthal A1”.
The door opens by rotation and is filled with appropriate insulation. The furnace is first coated with a
primer (protective) paint and then finished with a top coat.
Model: DFK
Control: Microprocessor controller with programmer
Maximum temperature: T = 1000 °C
| MODEL NAME | WIDTH [mm] | DEPTH [mm] | HEIGHT [mm] | POWER [kW] | VOLTAGE [V] |
|---|---|---|---|---|---|
| DFK-23 | 280 | 320 | 260 | 4 | 380 |
| DFK-53 | 380 | 400 | 330 | 6 | 380 |
| DFK-74 | 420 | 420 | 420 | 7 | 380 |
| DFK-98 | 430 | 600 | 380 | 9 | 380 |
